Precision Surface Engineering Ecosystem

Precision Surface Engineering.
Global Reach.
Unmatched Perfection.

ThePolishing unifies advanced surface treatment technologies with deep engineering expertise. Driven by a disciplined and dynamic team, we deliver high-performance machinery—from automated drag finishing to custom industrial washing lines—engineered to exceed worldwide standards in durability and accuracy.

Select Your Application See Machines & Solutions
APPLICATION MATRICES

What is your surface goal?

Select your industrial challenge to explore customized machinery matches:

Deburring & Polishing: Drag & Vibratory Solutions
Scientific Verification

The Proof of Sub-Micron Precision

Industrial finishing is an exact science. By matching calculated abrasive media formulations with optimized variable frequency parameters, we systematically reduce metal peak heights into sub-micron mirror parameters without geometric deformation.

U.S. & EU Grid Ready Electrical Configuration Natively engineered to North American standards: 480V / 60Hz / 3-Phase (and 208V/240V variations) natively without the need of power-limiting external transformers.
Roughness Peak State Ra 0.8
Before (Raw Machined Part: Ra 0.8 µm)

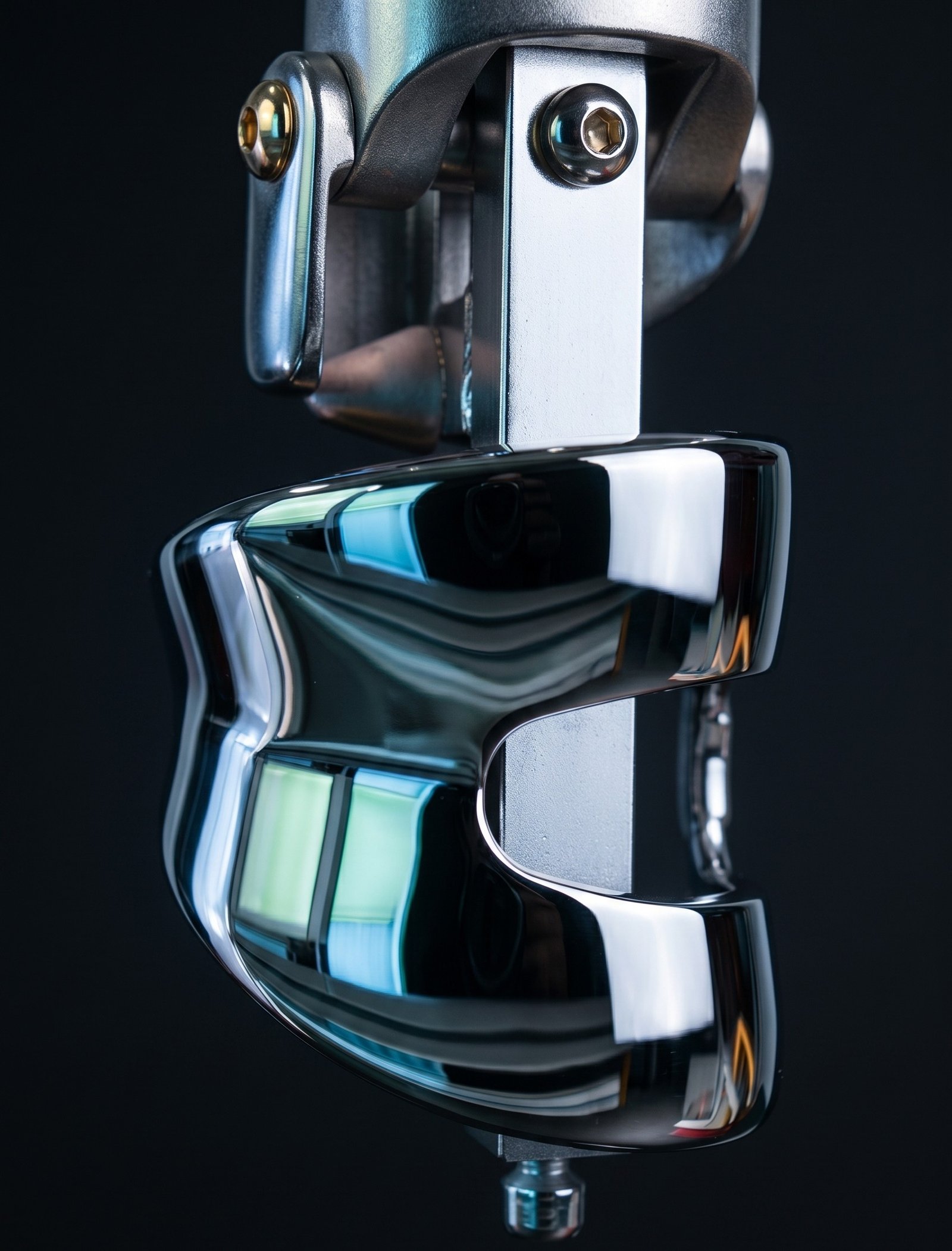

Polished Mirror State
ThePolishing™ Mirror Finish (Ra < 0.01 µm)

Slide the cursor across the workpiece surface to inspect the peak flattening.

Ra 0.8 → 0.01 µm
Medical Implant Finishing

High-Gloss biocompatible surfaces achieved in under 10 minutes of cycle time.

Micron Level
Carbide Edge Honing

Honing cutting edges with extreme micron precision to extend tooling lifespan up to 300%.

500 Parts/Hr
Automotive Line Washing

Consistent high-volume ultrasonic kavitasyon decontamination on mass production shift schedules.

Specialized Niche Divisions

Our Digital Ecosystem Gateway

Our integrated digital ecosystem offers specialized, high-fidelity technical resources and material validation databases tailored for each surface challenge. Select your target sector gateway to access custom testing protocols.

DRAGFINISHING.COM

Aerospace & Carbide Tooling

High-energy fixtured parlatma and edge prep systems for medical implants, aircraft blade turbine components, and high-performance cutting endmills. Absolute zero collision risk.

  • Micron-level edge preparation & rounding control.
  • Multi-spindle stream and drag configurations.
Go to Specialized Portal
PUNCHPOLISHING.COM

Tablet Tooling Authority

Specifically designed to restore and maintain the tablet-press tool's "Mirror Finish" to prevent sticking, picking, and capping issues in high-speed pharmaceutical production lines.

  • Flexible bushing holders for EURO B & D punch tooling.
  • Pure non-toxic organic walnut & corn cob polishing compounds.
Go to Specialized Portal
CLEANULTRASONICS.COM

Industrial Washing & Cavitation

Engineering massive Multi-Stage Wash-Rinse-Dry lines, high-pressure tunnel spray machines, and custom heavy-duty ultrasonic tanks up to 4,500 Gallons (17-Tons) capacity.

  • Advanced USC-series generators with auto frequency tracking.
  • Eliminates carbon, greases, and oxides from blind holes.
Go to Specialized Portal
Manufacturing & Engineering Scale

A Multidisciplinary Machinery Powerhouse

Our manufacturing process is entirely conducted in-house, giving us complete control over every aspect of production. Our facility is equipped with advanced technology, enabling us to produce high-performance machinery ranging from compact 1-gallon (approx. 4 L) benchtop units to massive 33-foot (approx. 10 meter) automated tunnel washers.

High-Volume Scale

Our industrial systems are engineered to comfortably process 10,000+ parts per shift.

Siemens & Danfoss Reliability

Standardly fitted with Siemens PLC controls, Danfoss inverters, and Schneider current relays.

Request custom process design

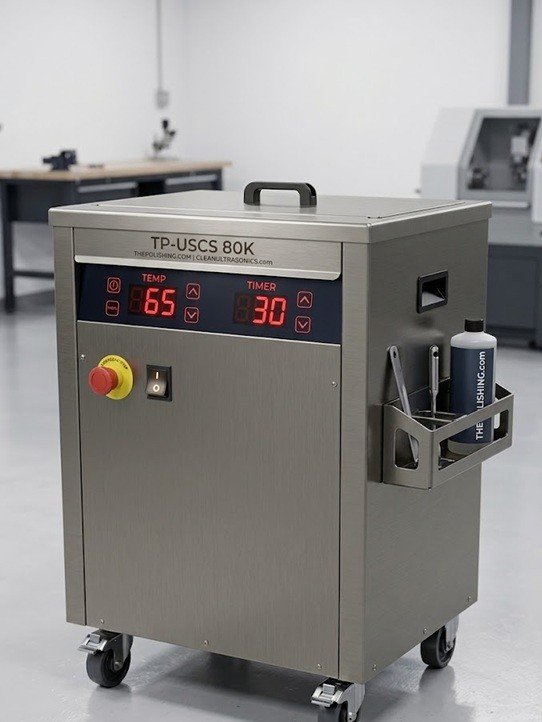

ThePolishing USCS 80K Premium Flagship Console
MODEL: TP-USCS80K 2-YEAR FACTORY WARRANTY

Uncompromising System Reliability

Certified premium chassis natively fitted with Siemens PLC controls, Danfoss VLT inverters, and Schneider safety relays for uninterrupted 24/7 cleanroom or workshop runs.

High-Energy Fixtured Finishing

Precision Without Collision:
Drag & Stream Technology

Stop risking high-value tools, punches, and aerospace turbine components in bulk rotary tumblers. Our fixtured systems deliver flawless, micron-perfect finishes by individually mounting parts on rotating spindles and moving them through abrasive media.

Zero Collision

Zero part-on-part contact. Completely protects sharp cutting edges and mirror punch cups.

Time Efficiency

Achieve high-gloss mirror-like surface reflections in minutes instead of hours of bulk finishing.

Separately Adjustable Kinematics Spindle speed, rotational head movement, and container tracking are fully programable via the Siemens Comfort Panel.

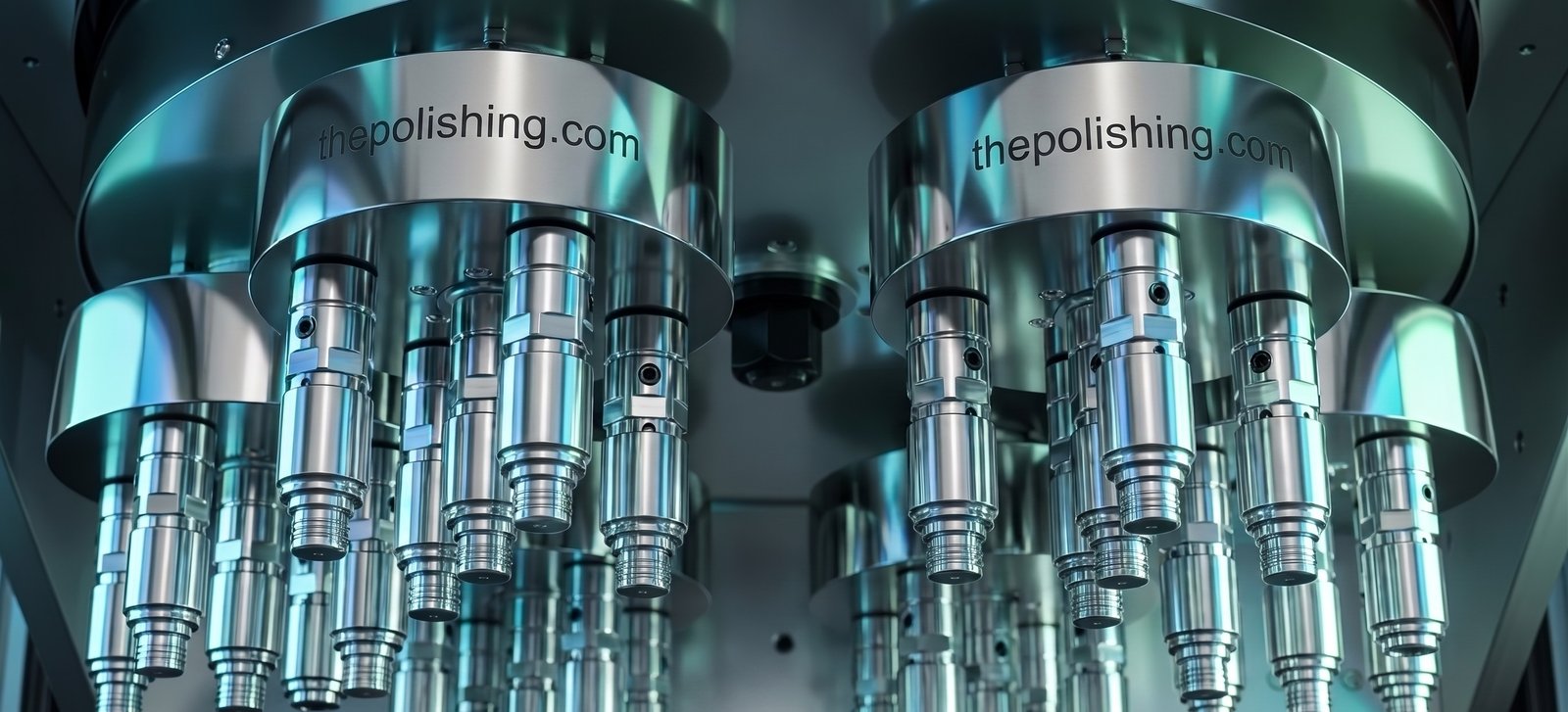

Drag finishing planetary spindle action
PLANETARY ACTION DETECTED
THE ACTION

Parts are mounted on rotating spindles and physically dragged through a stationary container filled with abrasive media.

INTENSITY: High (1 to 2G)
CYCLE TIME: 10 - 20 Minutes
Best Suited For: Complex high-geometry items, orthopedic implants, large cutting tools, and tablet stamp punches.
Explore dragfinishing.com specialized platform

Industries We Serve

Discover the technical details of our advanced surface treatments. Click on your sector to view customized R&D solutions, media paired parameters, and target benefits.

Edge Preparation & Honing

Precision edge rounding and adjustable radius control on endmills, drills, and hobs for hitting optimum parameters.

Biocompatible Implants

Attaining smooth, biocompatible mirror-like finishes on hip joints and knee replacements to minimize organic friction wear inside the body.

Post-Treatment

Cleaning micro-droplets after CVD/PVD coating to optimize material cutting speeds and improve tool lifecycle up to 300%.

Specialized Precision Tooling & Implant Portal

We have engineered a fully validated mass finishing ecosystem at dragfinishing.com.

Go to dragfinishing.com
Tablet Punches (EURO B & D)

Eliminating picking, sticking, and capping errors via automated, repeatable drag parlatma cycles with polyamide connections.

Polishing of Dies

Utilizing specialized multi-cavity holders, die blocks are finished uniformly internally without affecting critical dimensions.

Specialized Pharmaceutical Portal

We have engineered a fully validated FDA compliance system and media range at punchpolishing.com.

Go to punchpolishing.com
Turbine Airfoils

Polishing and deburring critical single-crystal jet turbine blades to improve aerodynamic flow efficiencies.

Structural Fatigue

Establishing uniform surface finishes over titanium landing gear structures to increase stress fatigue thresholds.

Defense & Weaponry

Polishing and deburring gun slides, triggers, and ammunition cases to guarantee feeding and extraction reliability.

Layer Line Removal

Efficiently eroding katman (layer) lines from sintered metal or polymer 3D printed components.

Intricate Geometry Finish

Uniform finishing of complex internal channels produced via additive powder processes without destroying fine structural details.

Post-Processing Prints

Preparing sintered surface profiles for structural validation or high-gloss paint/plating finishes.

Cost-Effective Batch Finishing

TPV Vibratory Bowls & TPC Centrifugal Series

While our Drag Finishing excels in individual, high-precision geometry tracking, our foundational Vibratory bowls (TPV) and Centrifugal Spin units (TPC) provide the most cost-effective and reliable high-volume surface treatment for bulk machined components.

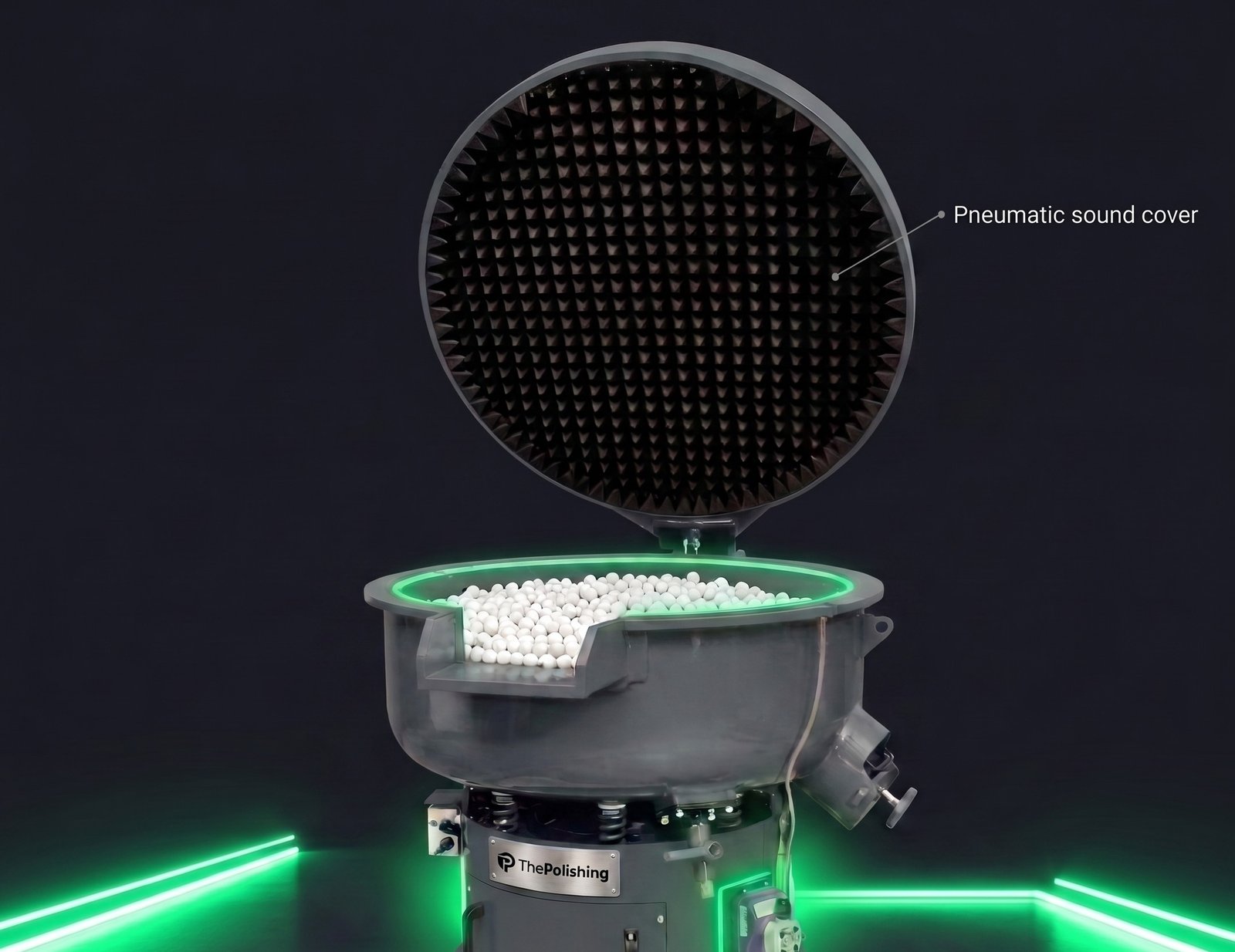

TPV Vibratory Bowl MASS FINISHING

TPV Circular Vibratory Series

TPV BOWL

Designed to deburr, clean, and polish hundreds of parts in a single, automated batch cycle. Perfect for cast elements, stamped hardware, and general metalware pieces.

  • Standard Integrated VFD Panel: Speed-controlled vibration parameters are standard, unlike competitors.
  • Highly resistant, hot-cast polyurethane liner bowl for absolute wear resistance.
APPLICATIONS: Fasteners, Hand Tools, Gears, Cast Parts

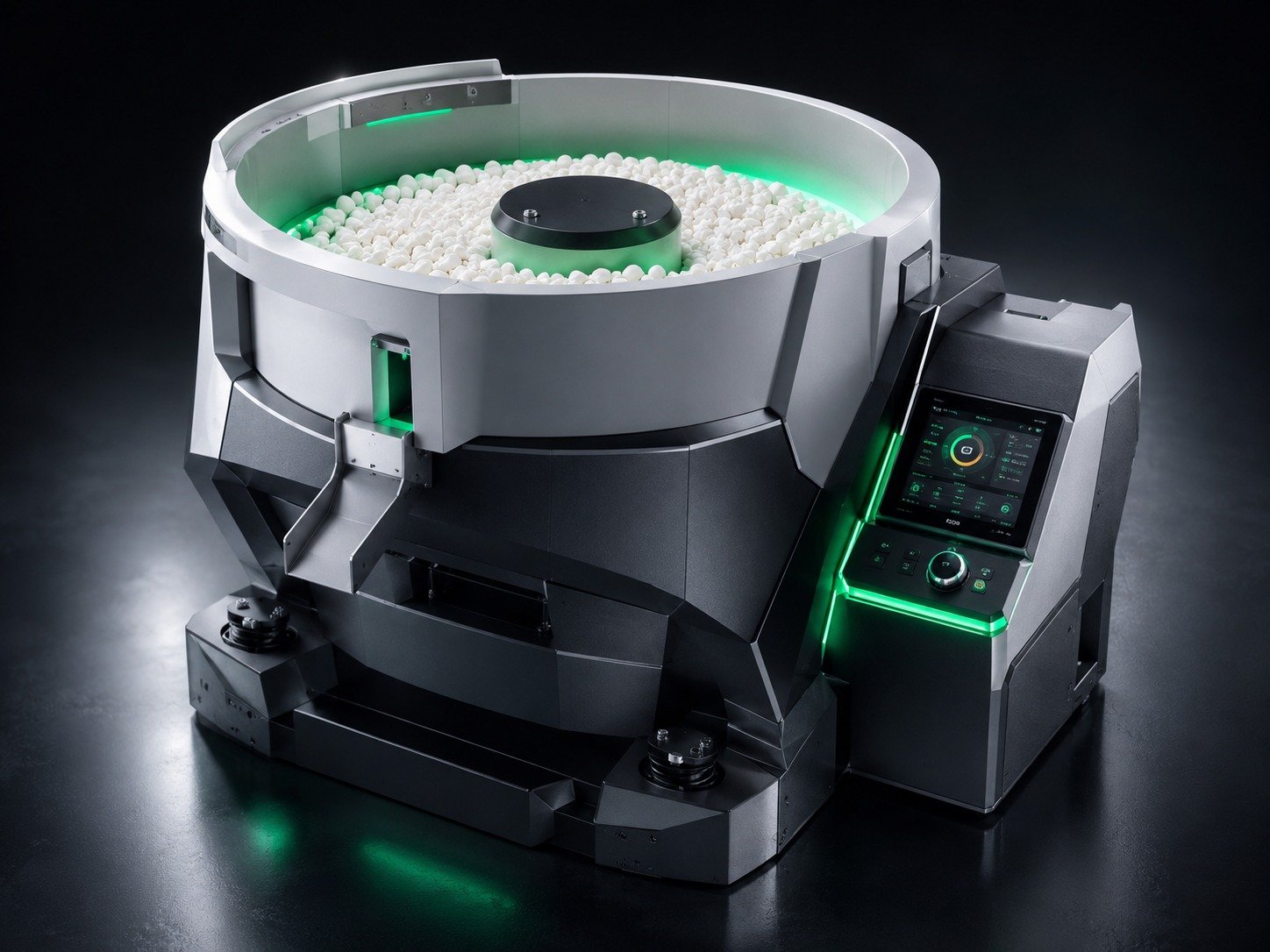

TPC Centrifugal Spin HIGH ENERGY

TPC Centrifugal Spin Series

TPC SPIN

Achieves surface processing speeds up to 10x to 15x faster than traditional vibratory finishing. High centrifugal force compresses media and components, transforming hours into minutes.

  • Extreme G-force minimizes part impingement, preserving micro margins.
  • Perfect for miniature elements requiring pristine reflective finishes.
APPLICATIONS: Watchmaking, Jewelry, Fine Precision Electronics

Vibratory Selection Guide

VFD INCLUDED STANDARD
Class Group Model Range Container Capacity (Liters & Gallons) Best Suited For
Benchtop / Small Scale TPV 100 - 150 100 - 150 Liters (approx. 26 - 40 Gallons) Precision elements, dental tools, watch dials, and jewelry.
Industrial Standard TPV 250 - 500 250 - 500 Liters (approx. 66 - 132 Gallons) Automotive stampings, mass-produced fasteners, hand tools.
Heavy Industrial / HD TPV 800 - 1200 800 - 1200 Liters (approx. 211 - 317 Gallons) Large turbine housings, marine coolers, agricultural machinery castings.

System Enhancements & Waste Management

A high-performance surface line is not complete without automated auxiliary systems. Elevate worker safety, increase sorting speeds, and comply with EPA regulations seamlessly.

TPV-D DRYERS

Circular Hot Air Dryers

Delivers rapid, spot-free drying required for high-standard medical and aerospace components. Utilizes heated organic corn cob media to prevent flash oxidation immediately following the wet vibratory process.

Pro-Insight: Spot-Free & Zero Moisture Retention
MSM SEPARATORS

Magnetic & Vibratory Separators

Specifically designed for high-volume automotive and defense projects. Our automated magnetic sorting arrays ensure 100% recovery of ferrous components from finishing media, completely eliminating manual sorting labor.

Pro-Insight: 100% Automated Part Recovery
ACOUSTIC COVER

OSHA Sound Dampening Covers

A heavy-duty, pneumatically controlled insulating cover for TPV vibratory bowls. Drastically decreases shop-floor decibel levels to keep facility conditions completely compliant with OSHA regulations.

Pro-Insight: Worker Health & OSHA Compliance
Environmental & Waste Management

HYDRO-LOOP Closed-Loop Water Recycling

Don't just finish your parts; manage your footprint. Our HYDRO-LOOP series utilizes custom paper filters and oil-mist collectors to create a highly efficient closed-loop system, separating oils and metallic fines.

Save Water, Stay Compliant: Recycles process wash-water, eliminating local wastewater disposal penalties.
Clean Air, Clean Shop: Oil-mist and air filtration units keep cleanroom air parameters compliant.
TP-FPM RIM SERIES

Specialized Alloy Wheel Detailing

Designed from scratch for the automotive detailing and luxury rim sectors. Our TP-FPM systems turn dull alloy wheels into high-gloss, show-car masterpieces in a single automated process without any manual grinding.

Process Time: Single Automated Run
Advanced Cavitation Engineering

Precision Cleaning: From Benchtop to Mega-Scale

Whether it is a 4-liter medical drill or a massive 17-ton marine cooler, we engineer the precise kavitasyon power to eliminate every single micron of oil, grease, carbon, and soot from internal geometries where manual brushes cannot reach.

Beyond Scrubbing: Controlled Cavitation

Ultrasonic waves generate billions of microscopic vacuum bubbles in fluids. Upon collapsing, these bubbles release intense pressure waves that effortlessly tear away contaminants from submerged components without causing any scratching.

Micro-Precision: Reaches blind holes, fine thread grooves, and intricate inner chambers easily.
AISI 316L Tank Construction: Built natively with high-thickness (2.00 mm), acid-proof stainless steel for extreme longevity.
Displacement Margin: Designed extra deep to handle basket fluid displacement without overflow.
CAVITATION PRESET ACTIVE: 40 kHz
Hassas Temizlenen Parca CLEANING
Frequency Select:
Engineering for Uptime

Integrated Frequency Switching vs. Strategic Redundant Setup

While we construct single-tank frequency-switching systems, for continuous industrial production lines, we highly recommend our **Strategic Redundancy Setup** (separate 28 kHz scrubbing and 40 kHz detailing tanks).

Zero-Downtime Reliability If one electrical transducer circuit requires inspection, the other continues running. Your production line never shuts down.
Parallel Processing Double your facility throughput by washing raw casting units and fine-cleaning machined parts simultaneously.

USC Series Selection Matrix

AISI 316L ACID-PROOF
Model Volume (Gallons & Liters) Internal Tank Dimensions (Millimeters & Inches) Class Format
USC-04 1.0 Gal / 4 Liters 135 x 240 x 150 mm (approx. 5.3" x 9.4" x 5.9") Benchtop (S Series)
USC-12 3.2 Gal / 12 Liters 240 x 300 x 200 mm (approx. 9.4" x 11.8" x 7.8") Benchtop (S Series)
USC-18 4.7 Gal / 18 Liters 300 x 329 x 200 mm (approx. 11.8" x 12.9" x 7.8") Benchtop (M Series)
USC-28 7.4 Gal / 28 Liters 505 x 300 x 200 mm (approx. 19.8" x 11.8" x 7.8") Benchtop (M Series)
USC-35 9.2 Gal / 35 Liters 600 x 300 x 200 mm (approx. 23.6" x 11.8" x 7.8") Max Benchtop (M Series)
USC-40 10.5 Gal / 40 Liters 400 x 350 x 300 mm (approx. 15.7" x 13.7" x 11.8") Floor-Stand (L Series)
USC-60 15.8 Gal / 60 Liters 600 x 300 x 350 mm (approx. 23.6" x 11.8" x 13.7") Floor-Stand (L Series)
USC-80 21.1 Gal / 80 Liters 500 x 400 x 400 mm (approx. 19.6" x 15.7" x 15.7") Industrial HD (L Series)
R&D Case Studies

Proven Special Engineering Cases

Explore the technical anatomy of two custom industrial washing solutions engineered from scratch by our R&D department.

CASE 01: POWER ENERGY

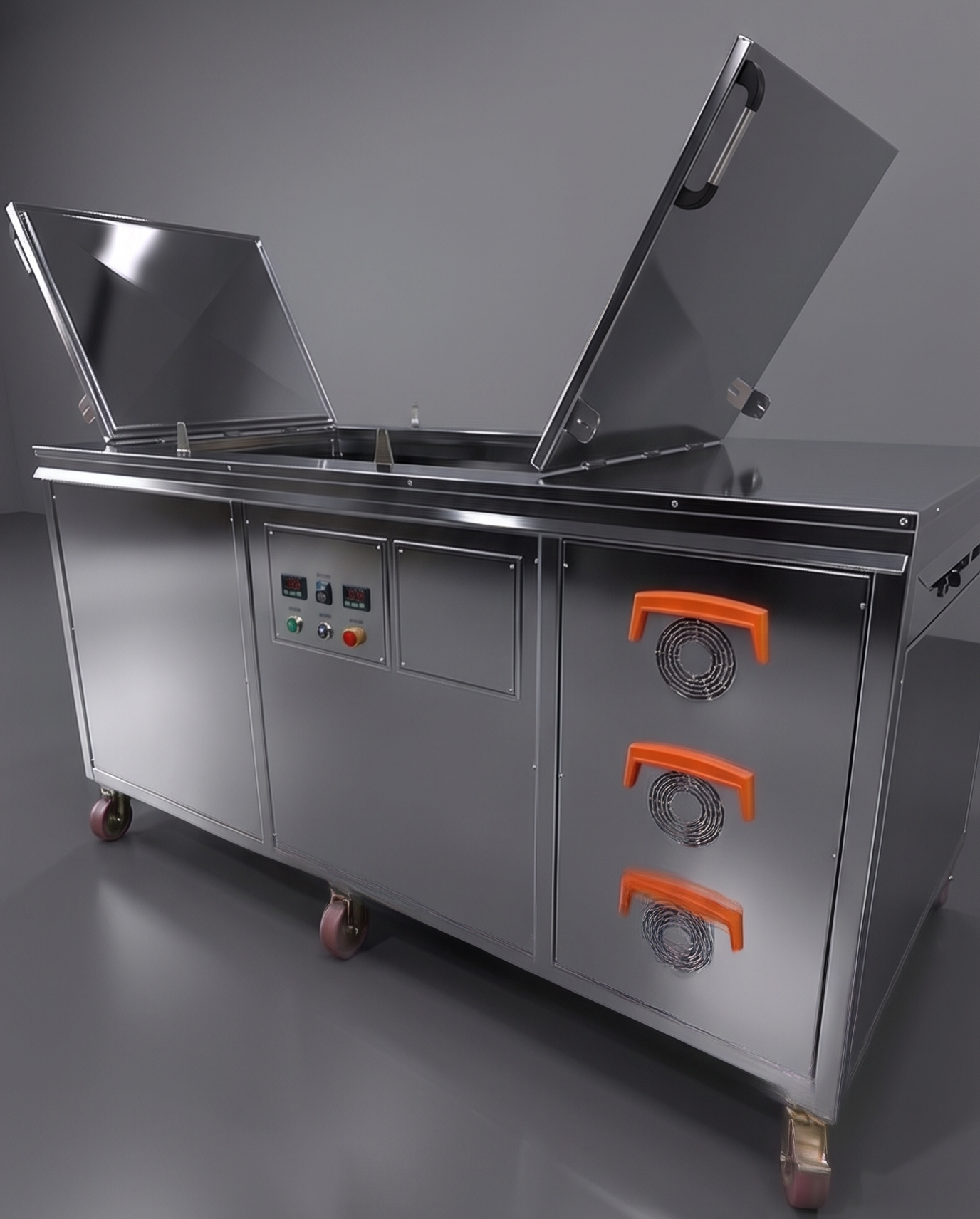

1,800-Liter (approx. 475 Gal) Custom Cleaning Cell

1800L USW Custom Cell

Designed for a major power plant facility to clean heavy turbine rotors. Engineered with thick 2.00 mm AISI 316L stainless steel tank structure and 2.50 mm transducer modules to support multi-ton component loads without tank deformation.

Lid Automation: Pneumatic Auto Air Lift (CAM Switch)
Cavitation Modules: 12 kW Output
Heating Array: 21 kW Fast Thermal
Base Support: 9 Heavy Locking Wheels
Natively Engineered for U.S. Electrical Grid Standards (480V/60Hz/3PH)
CASE 02: FOOD QUALITY

TPTT Tunnel Washing Line

An automated high-pressure conveyor line designed for a global confectionery giant to continuously wash sticky cocoa fat residues off rubber confectionery molds.

WASH ZONE DRY ZONE (AIR BLOW)
MOLD
MOLD
MOLD
MOLD
Adjust Conveyor Speed: 1.5 m/min
Washing Hygiene: 99.98% Sterile Clean
Continuous Throughput: 300 Molds / Hour
Design Compliance: 100% FDA-Grade & Automated Cover Controls
Process Consumables & Compounds

The Core Science of the Surface (Abrasive Media)

A high-precision surface processing machine is only as powerful as the media it runs. We pair calibrated ceramic, plastic, and organic shapes to guarantee your desired RMS (Roughness) goals.

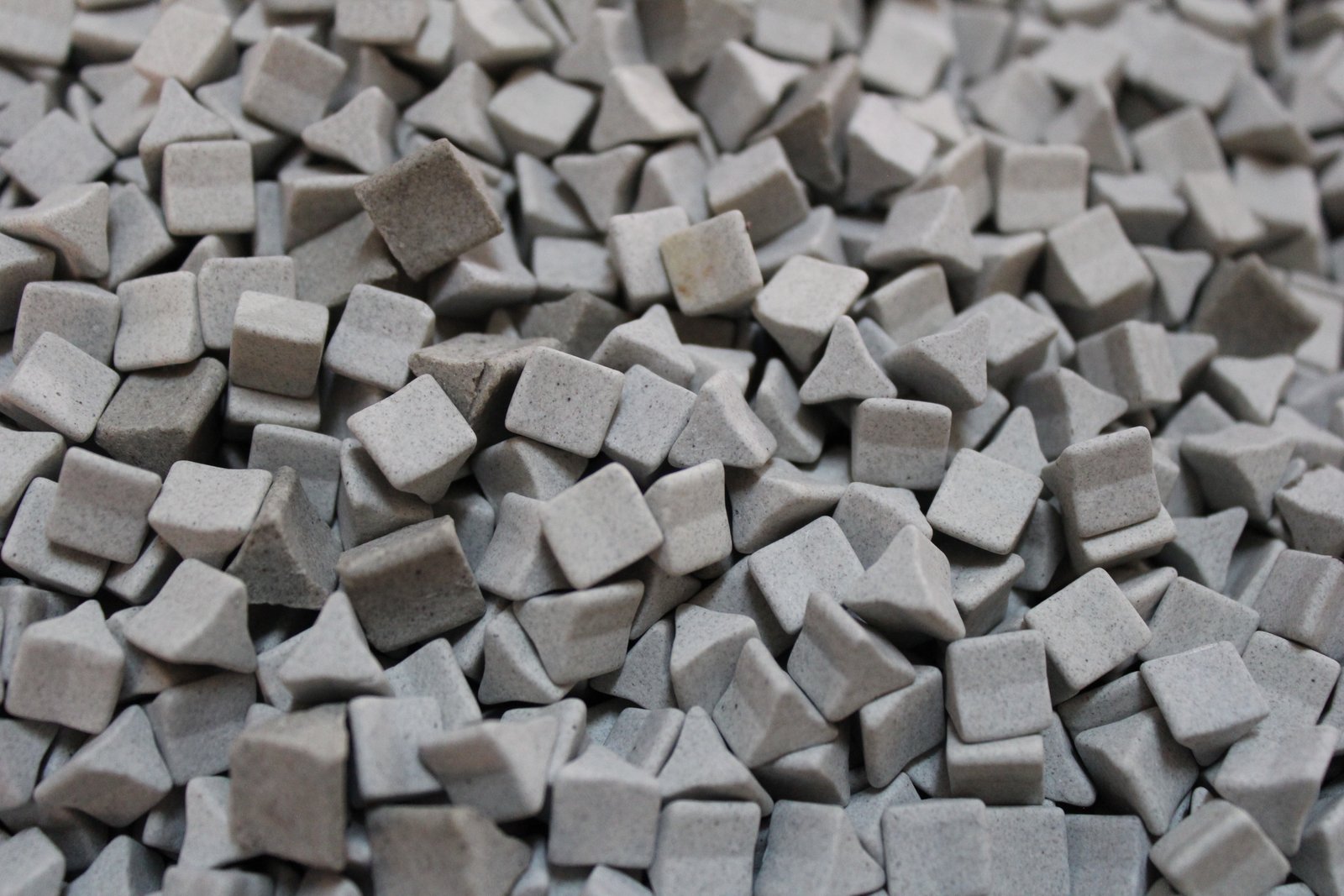

Triangular ceramic abrasive media DREP-20 SERIES

Calibrated Ceramic Cones

High-density porselen and ceramic triangular cones designed to access complex turbine slot geometries or surgical drill bit channels without any risk of lodging.

Material: Titanium & Hardened Steels Compatible

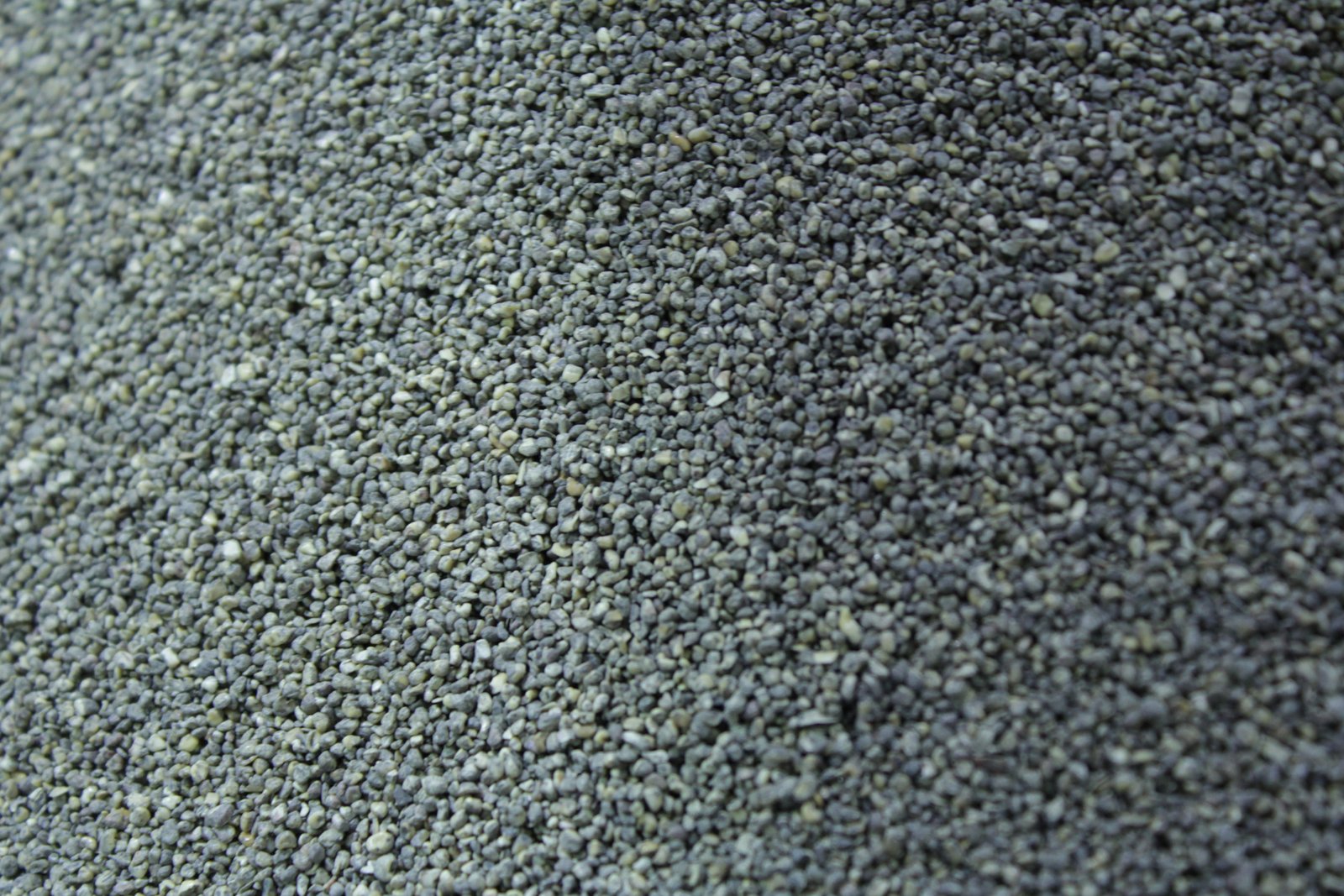

Organic pre-treated walnut shell granulate WS-400 PURE

Organic Pre-Treated Granulate

Premium organic walnut shell fragments, pre-infused with our proprietary Mirror-Powder-X to achieve absolute non-destructive mirror reflections on delicate FDA stamp cups.

Material: FDA-Grade Tooling & Precision Watchmaking

Engineered Media Range

PRE-TREATED FOR REFLECTIVE MIRROR
Series Code Process Action Target Applications Material Compatibility
GRIND-20/30 Rapid Deburring & Heavy Scale Removal Forged engine valves, heavy metal castings. Forged Carbon Steel
DREP-20 Precision Cutting Edge Preparation Edge prep for carbide endmills & drills. Titanium, Inconel, Superalloys
EDGEP-30/50 Controlled Radiusing & Smoothing Micro radiusing on transmission parts. Hardened Steel, Carbide
WS-400 (Walnut) Fine Organic Mirror Polishing Tablet punch maintenance (punchpolishing.com). Tool Steel, Stainless (AISI 316)
MAI-1677 (Corn) High-Gloss Buffing & Rapid Drying Fine luxury watch cases, delicate brass. Non-Ferrous, Precision Alloys
Ultrasonic Washing Chemicals

CleanUltrasonics™ Compounds

Our concentrated formulations act as powerful surfactant agents, significantly reducing cycle times and leaving parts ready for instant assembly.

Alkaline Power (Heavy-Duty): Heavy carbon, oils, grease removal
Acid Finish Descalers: Oxide, scale, and rust clean
Phosphate-Free Detergents: Eco-friendly & medical safe
Mass Finishing Additives

ThePolishing™ Liquid & Powders

Designed to optimize abrasive action during wet vibratory cycles or dry organic runs, keeping finishing media clean from metallic fines.

Mirror-Powder-X Compound: Sustains dry walnut stamp polishing
Degreasing Additives: Suspends metallic fine particulates
Flash-Rust Inhibitors: Protects parts during transit
Process Validation Laboratory

Free Sample Testing & Surface Analysis

Stop guessing which stone geometry, frequency, or compound matches your workpiece. Ship up to 5 unpolished components to our process laboratory in Turkey. Our specialized team of chemical and mechanical engineers will run optimized trials and return a comprehensive optical surface roughness (Ra) report—entirely free of charge.

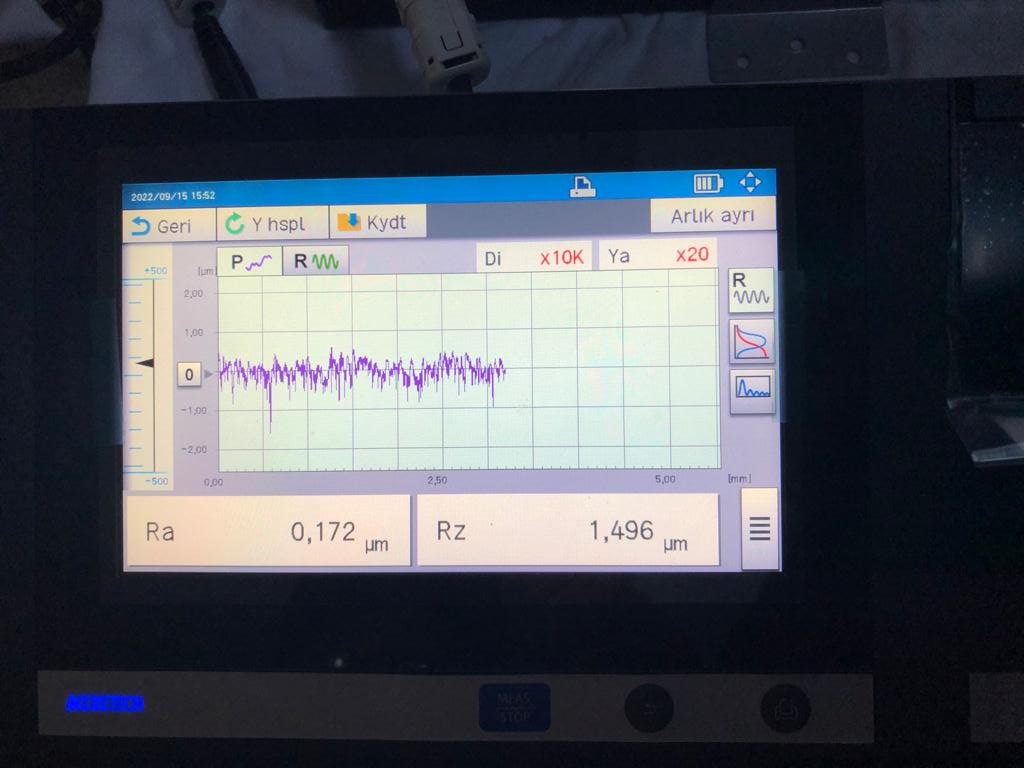

Surface profilometer calibration screen
CALIBRATION READINESS

Optical Roughness Metrics

Certified 3D optical scanning to evaluate precise Ra, Rz and surface valley heights down to sub-micron accuracy before shipping.

2-YEAR FACTORY WARRANTY

Request Your Process Evaluation

Alternatively, you can send your technical drawings and RFQ documents directly to: info@thepolishing.com
